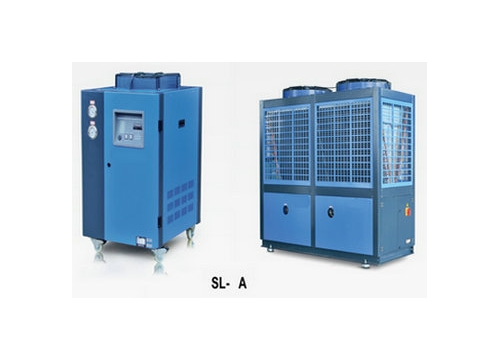

The device can cool the water temperature ranging from 7 to 35℃. The low cooling temperature can be customized as per customer's needs. The micro computer controls the system running and the temperature can be precise to 1℃. The overload protection device is used for compressor and pump to prolong the service life. The multi protection device (antifreezing protection, high and low pressure protection and flow protection) ensures the system safety. The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve re
|
|
SL-3A |
SL-5A |
SL-10A |
SL-15A |
SL-20A |
SL-30A |
SL-40A |
SL-50A |
SL-60A |
|
|
Refrigeration capacity |
Kw |
10 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
180 |
|
Kcal/h |
7740 |
12900 |
25800 |
38700 |
51600 |
77400 |
103200 |
129000 |
154800 |
|
|
Compressor Inputpower |
Kw |
2.2 |
3.7 |
7.5 |
11 |
15 |
22.5 |
30 |
37.5 |
45 |
|
HP |
3 |
5 |
10 |
15 |
20 |
30 |
40 |
50 |
60 |
|
|
Type Refrigerant |
R22 |
|||||||||
|
Kg |
1.5 |
2.5 |
5 |
7.5 |
10 |
12 |
18 |
30 |
35 |
|
|
Water tank capacity |
L |
60 |
90 |
180 |
270 |
360 |
--- |
--- |
--- |
--- |
|
Evaporator type |
Serpentine pipe type ; Shell type |
|||||||||
|
Freezing water pipe |
Inch |
1 |
1 |
1.5 |
2 |
2 |
3 |
3 |
4 |
4 |
|
Freezing water flow rate |
L/min |
60 |
90 |
180 |
270 |
270 |
270 |
380 |
460 |
550 |
|
M³/h |
3.6 |
5.4 |
11 |
16 |
16 |
16 |
23 |
28 |
33 |
|
|
Type Fan motor |
Axial flow type blower fan |
|||||||||
|
Kw |
0.45 |
0.45 |
0.45x2 |
0.65x2 |
0.65x2 |
0.65x4 |
0.65x4 |
1.1x2 |
1.8x4 |
|
|
Safeguard |
Protection of high & low pressure, Protection of high & low pressure,compressor overload, |
|||||||||
|
Power |
AC3+N+PE50/60Hz |
|||||||||
|
Dimensions(mm) |
L |
750 |
1100 |
1450 |
2200 |
2200 |
2200 |
2500 |
2200 |
3000 |
|
W |
680 |
680 |
790 |
1000 |
1320 |
1320 |
1200 |
2000 |
2200 |
|
|
H |
900 |
1100 |
1120 |
2100 |
2100 |
2180 |
2290 |
2180 |
2180 |
|
|
Weight |
Kg |
100 |
160 |
300 |
700 |
750 |
1400 |
1600 |
2200 |
2400 |
|
Note: |
||||||||||
|
|
