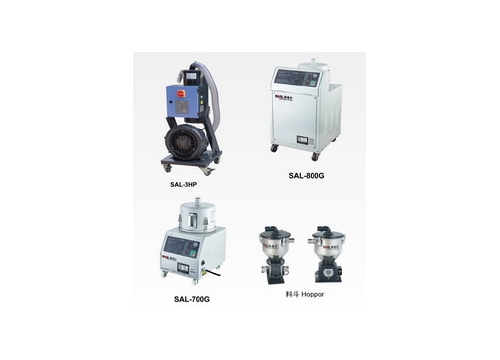

Separation design between the controller and the material hopper, which is convenient and simple to operate. Accurate micro computer control and alarm attentions. Motor overload protection equipped to effectively prolong the service life of the motor. With the high voltage blower, the materials can be conveyed in a long distance. The hopper is made from the stainless steel to ensure that the material can not be polluted. The machine type one-to-several plastic Injecting molding machine can be selected for charging as per customer's needs. The electric eye hopper or vacuum hopper ca
|
Model |
Motor |
Convey- |
Convey-ing Height |
Material Hopper Volume |
Conveying Tube Calibre |
Extemal Dimensions |
Weight |
||
|
Controller |
Material Hopper |
Contro-ller |
Material |
||||||
|
kw |
kg/hr |
m |
L |
mm |
L*W*H |
(L*W*H |
kg |
kg |
|
|
SAL-700G |
1 |
300 |
4.5 |
6 |
Φ38 |
450*380*600 |
360*260*430 |
30 |
6 |
|
SAL-700GE |
1 |
300 |
4.5 |
6 |
Φ38 |
450*380*600 |
360*260*530 |
30 |
6 |
|
SAL-800G1 |
1.1 |
350 |
4.5 |
6 |
Φ38 |
450*380*600 |
360*260*430 |
45 |
6 |
|
SAL-800G1E |
1.1 |
350 |
4.5 |
6 |
Φ38 |
450*380*600 |
360*260*530 |
45 |
6 |
|
SAL-800G2 |
1.5 |
400 |
5 |
6 |
Φ38 |
450*380*600 |
400*260*430 |
50 |
10 |
|
SAL-800G2E |
1.5 |
400 |
5 |
6 |
Φ38 |
450*380*600 |
400*260*530 |
50 |
10 |
|
SAL-3HP |
2.2 |
550 |
7 |
12 |
Φ38 |
450*380*800 |
400*260*750 |
60 |
12 |
|
SAL-4HP |
3 |
600 |
8 |
20 |
Φ38 |
450*380*800 |
400*260*750 |
65 |
12 |
|
SAL-5HP |
3.7 |
700 |
8 |
20 |
Φ38 |
450*380*800 |
400*350*750 |
75 |
20 |
|
SAL-7.5HP |
5 |
800 |
10 |
30 |
Φ50 |
450*380*800 |
400*350*1000 |
90 |
25 |
|
SAL-10HP |
7.5 |
1000 |
12 |
30 |
Φ50 |
450*380*800 |
400*350*1000 |
90 |
25 |
|
|
