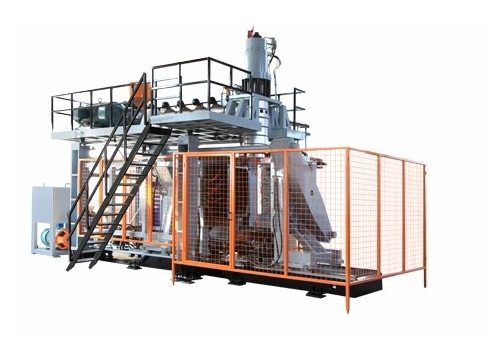

Features PLC plus human-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance;； Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload; Unique “Three tie bar + three cylinder + linear guide” structure of the clamping structure to ensure mold-lock uniform, knit line smoother; Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20% - 40% compared with the conventional model. At the same time, a significant reduction in oil tempera
|
Basic parameter |
|
|
Applicable material |
PE, PP,..... |
|
Max. product volume |
160 L |
|
Dry cycle |
300 pcs/h |
|
Machine size (L×W×H) |
6×2.6×4.4(m) |
|
Machine weight |
22 t |
|
Total power |
200 kw |
|
Power consumption |
100 kw/h |
|
Plasticizing system |
|
|
Specification |
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
|
Machine barrel screw |
∮120mm，L/D=30, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
350 kg/h |
|
Heating zone |
6 zones casting, aluminum heater |
|
Heating power |
135w |
|
Extrusion motor |
Three phase AC motor (380v、50Hz),75kw |
|
Lifting system |
Four turbo lifting |
|
Extrusion system |
|
|
Specification |
Accumulator die head |
|
Die head |
38CrMoALA high quality nitrogen steel |
|
Accumulator capacity |
18L with weight 12.6kg |
|
Max. dia. of die head |
520 mm |
|
Heating zone |
30 kw |
|
Parison adjust |
Core can be move up and down |
|
Open and clamping system |
|
|
Specification |
Gear wheel and rack in-phase aim at twin shaft clamping device, and cylinder |
|
Clamping force |
800 kn |
|
Mold move stroke |
600～1500 mm |
|
Mold platen dimension |
W×H:1000×1500 mm, three sets of holes in the mold platen for installing the mold |
|
Method of install mold to platen |
M24 screw |
|
Electric control system |
|
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature controller |
Japan Omron |
|
Action control |
Japan Mitsubishi, programmable PLC |
|
Protection function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic system |
|
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
Three phase a synchronism (380v、50Hz),45kw |
|
Hydraulic pump |
Variable pump YUKEN |
|
Hydraulic valve |
Imported hydraulic components |
|
System pressure |
100 kg/cm2 |
|
Pipes |
Bilayer high pressure blast pipes |
|
Cooling mode |
Water cool and oil cooler separately |
|
Pneumatic system |
|
|
Specification |
Imported famous brand pneumatic pressure |
|
Air pressure |
0.6 MPa |
|
Air consumption |
0.8 m3/min |
|
Valve |
GERMANY FESTO |
|
Cooling system |
|
|
Specification |
Mold、barrel、oil box adopt independent cooling waterway |
|
Cooling medium |
Water |
|
Water consumption |
300 L/min |
|
Water pressure |
0.3-0.6 MPa |
|
Blowing method |
Multi functional bottom blow mechanism |
|
Parison programmer |
Japan MOOG 100 POINTS |
|
|
