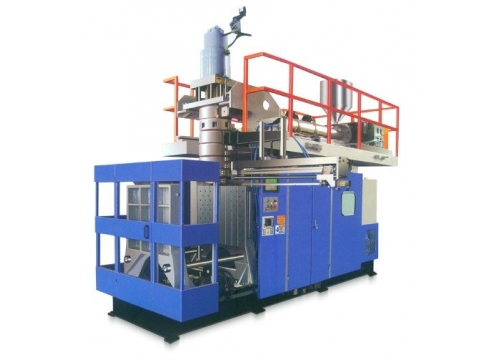

Features PLC plus human-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance;； Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload; Unique “Three tie bar + three cylinder + linear guide” structure of the clamping structure to ensure mold-lock uniform, knit line smoother; Hydraulic system designed under energy-saving hydraulic principles, lower energy consumption by 20% - 40% compared with the conventional model. At the same time, a significant reduction in oil tempera
|
Applicable material |
PE, PP,..... |
|
Max. product volume |
30 L |
|
Dry cycle |
650 pcs/h |
|
Machine size (L×W×H) |
4.23×2.3×3.5 (m) |
|
Machine weight |
11.5 t |
|
Total power |
74 kw |
|
Power consumption |
38 kw/h |
|
Plasticizing system |
|
|
Specification |
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
|
Machine barrel screw |
∮80mm，L/D=24, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
100 kg/h |
|
Heating zone |
4 zones casting, aluminum heater |
|
Heating power |
16 kw |
|
Extrusion motor |
Three phase a synchronism motor (380v、50Hz),30kw |
|
Cooling fan |
3 zones 85w |
|
Extraction system |
|
|
Specification |
Accumulator die head |
|
Die head |
38CrMoALA high quality nitrogen steel |
|
Max. dia. of die head |
300mm |
|
Heating zone |
4 zones heat coil of stainless steel |
|
Accumulator capacity |
4 L |
|
Heating power |
11.9 kw |
|
Die heat huff |
Pressure and capacity can be adjusted |
|
Preform adjustment |
Automatic |
|
Heat insulation |
By heat insulating board between accumulator and hydraulic cylinder |
|
Open and clamping system |
|
|
Specification |
Linear rolling guide , three tie bar and three cylinder |
|
Clamping force |
220 kn |
|
Mold move stroke |
400～830 mm |
|
Max. mold platen |
W×H:600×700 mm |
|
Electric control system |
|
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature control |
Self-regulation |
|
Temperature module |
MITSUBISHI automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable |
|
Protection function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic system |
|
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
Three phase a synchronism (380v、50Hz),15kw |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
Imported hydraulic components—YUKEN |
|
System pressure |
100 kg/cm2 |
|
Pipes |
Bilayer high pressure blast pipes |
|
Cooling mode |
Water cool and oil cooler separately |
|
Pneumatic system |
|
|
Specification |
Imported famous brand pneumatic pressure |
|
Air pressure |
0.6 MPa |
|
Air consumption |
0.8 m3/min |
|
Valve |
TAIWAI AIRTAC |
|
Cooling system |
|
|
Specification |
Mold、barrel、oil box adopt independent cooling waterway |
|
Cooling medium |
Water |
|
Water consumption |
50 L/min |
|
Water pressure |
0.2-0.6 MPa |
|
Thickness control system |
|
|
Parison programmer |
Japan MOOG 30 points |
|
Servo valve |
Japan MOOG |
|
Sensor |
Italy Gefran |
|
Take out robot |
|
|
Pneumatic cylinder |
Germany FESTO non-rod pneumatic cylinder |
|
Bottom blow mechanism |
|
|
Bottom blow |
Ready for X-Y-Z expand material and blow |
|
|
