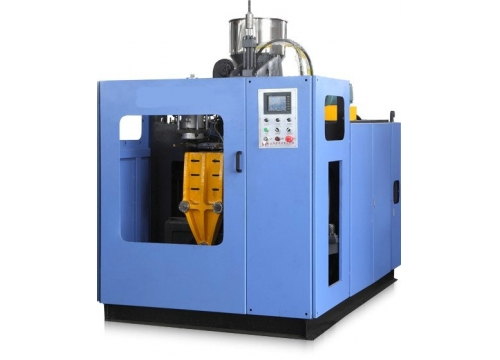

GLB50-2L
Features PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance; Center input die head, eliminating the knit line completely and making it easy to change the material and color; Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother; Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving; High speed and efficient plasticizing system, mixi
Features PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance; Center input die head, eliminating the knit line completely and making it easy to change the material and color; Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother; Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving; High speed and efficient plasticizing system, mixi
|
Basic parameter
|
|
|
Applicable material
|
PE, PP....
|
|
Max. product volume
|
One die head for 2L
|
|
Dry cycle
|
1500 pcs/h
|
|
Machine size (L×W×H)
|
2.6×1.6×2.4 (m)
|
|
Machine weight
|
3.2t
|
|
Total power
|
29.8kw
|
|
Power consumption
|
12.2kw/h
|
|
Plasticizing system
|
|
|
Specification
|
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting
|
|
Speed reducer
|
Hard-teeth, low noise & wear-resistant speed reducer
|
|
Machine barrel screw
|
∮50mm，L/D=24, 38CrMoALA high quality nitrogen steel
|
|
Plasticizing
|
35kg/h
|
|
Heating zone
|
3 zone Casting, aluminum heater
|
|
Heating power
|
8.2 kw
|
|
Extrusion motor
|
Three phase a synchronism motor (380v、50Hz),11kw
|
|
Cooling fan
|
3 zones 85w
|
|
Extrusion system
|
|
|
Specification
|
Two die head
|
|
Max. dia. of die head
|
Two die head: ∮ 25mm
|
|
Heating zone
|
3 zone heat coil of stainless steel
|
|
Heating power
|
4.5 kw
|
|
Die heat huff
|
Pressure and capacity can be adjusted
|
|
Preform adjustment
|
Automatic
|
|
Open and clamping system
|
|
|
Clamping force
|
30 kn
|
|
Mold move stroke
|
138～368 mm
|
|
Max. mold dimension
|
W×H:300×320 mm
|
|
Electric control system
|
|
|
Specification
|
Standard PLC and colorful touch screen for blow molding machine
|
|
Touch screen
|
Colorful touch screen, auto alarm, diagnose the system
|
|
Temperature control
|
Self-regulation
|
|
Temperature module
|
Taiwan I-7018RP automatic temperature module, digital
|
|
Action control
|
Japan Mitsubishi, programmable
|
|
Protection function
|
Automatic alert and breakdown feedback double protection of mechanical apparatus
|
|
Hydraulic system
|
|
|
Specification
|
Proportion pressure controller changing direction quickly and softly
|
|
Oil pump motor
|
three phase a synchronism (380v、50Hz),5.5kw
|
|
Hydraulic pump
|
Vane pump
|
|
Hydraulic valve
|
Imported hydraulic components
|
|
System pressure
|
100kg/cm2
|
|
Pipes
|
Bilayer high pressure blast pipes
|
|
Cooling mode
|
Water cool and oil cooler separately
|
|
Pneumatic system
|
|
|
Specification
|
Imported famous brand pneumatic pressure
|
|
Air pressure
|
0.6MPa
|
|
Air consumption
|
0.8m3/min
|
|
Valve
|
TAIWAI AIRTAC
|
|
Cooling system
|
|
|
Specification
|
Mold、barrel、oil box adopt independent cooling waterway
|
|
Cooling medium
|
Water
|
|
Water consumption
|
40L/min
|
|
Water pressure
|
0.2-0.6MPa
|
|
|
