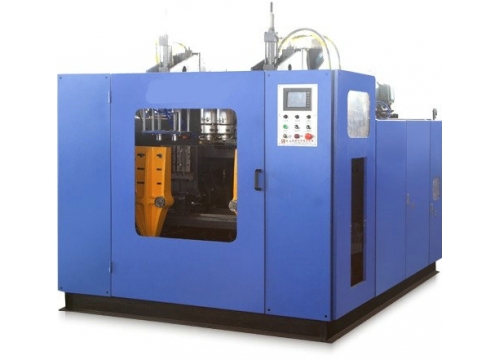

Features PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance; Center input die head, eliminating the knit line completely and making it easy to change the material and color; Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother; Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving; High speed and efficient plasticizing system, mixing well and ens
|
Basic parameter |
|
|
Applicable material |
PE, PP,..... |
|
Max. product volume |
One die head for 2L |
|
Dry cycle |
900x2 pcs/h |
|
Machine size (L×W×H) |
2.7×1.9×2.6(m) |
|
Machine weight |
4.3 t |
|
Total power |
36 kw |
|
Power consumption |
14.8 kw/h |
|
Plasticizing system |
|
|
Specification |
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
|
Machine barrel screw |
∮60mm，L/D=24, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
65 kg/h |
|
Heating zone |
3 zones casting, aluminum heater |
|
Heating power |
12.6 kw |
|
Extrusion motor |
Three phase a synchronism motor (380V、50HZ),15KW |
|
Cooling fan |
3 zones 85W |
|
Extrusion system |
|
|
Specification |
Center input die head , product weight adjustable |
|
Die head |
38CrMoALA high quality nitrogen steel |
|
Max. dia. of die head |
∮ 90mm |
|
Heating zone |
3 zones heat coil of stainless steel |
|
Central distance of die head |
60 mm |
|
Heating power |
4.5 kw |
|
Open and clamping system |
|
|
Specification |
Gear wheel and rack in-phase aim at twin shaft clamping device, and cylinder |
|
Clamping force |
40 kn |
|
Mold move stroke |
138～368 mm |
|
Mold platen dimension |
W×H:300×340 mm, three sets of holes in the mold platen for installing the mold |
|
Mold thickness |
140-180 mm |
|
Electric control system |
|
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature module |
Taiwan I-7018RP automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable PLC |
|
Protection function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic system |
|
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
Three phase a synchronism (380v、50Hz),5.5kw |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
Imported hydraulic components |
|
System pressure |
100kg/cm2 |
|
Pipes |
Bilayer high pressure blast pipes |
|
Cooling mode |
Water cool and oil cooler separately |
|
Pneumatic system |
|
|
Specification |
Imported famous brand pneumatic pressure |
|
Air pressure |
0.6Mpa |
|
Air consumption |
0.8 m3/min |
|
Valve |
TAIWAI AIRTAC |
|
Cooling system |
|
|
Specification |
Mold、barrel、oil box adopt independent cooling waterway |
|
Cooling medium |
Water |
|
Water consumption |
60 L/min |
|
Water pressure |
0.2-0.6 MPa |
|
|
