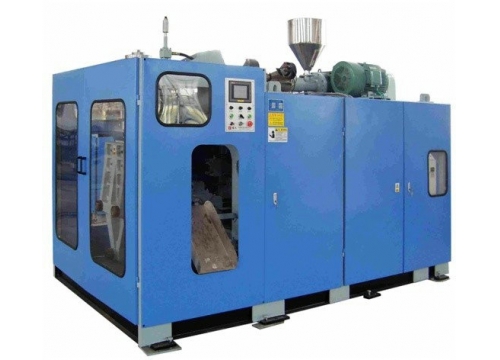

Features PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance; Center input die head, eliminating the knit line completely and making it easy to change the material and color; Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother; Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving; High speed and efficient plasticizing system, mixing well and ens
|
Basic parameter |
|
|
Applicable material |
PE, PP,..... |
|
Max. product volume |

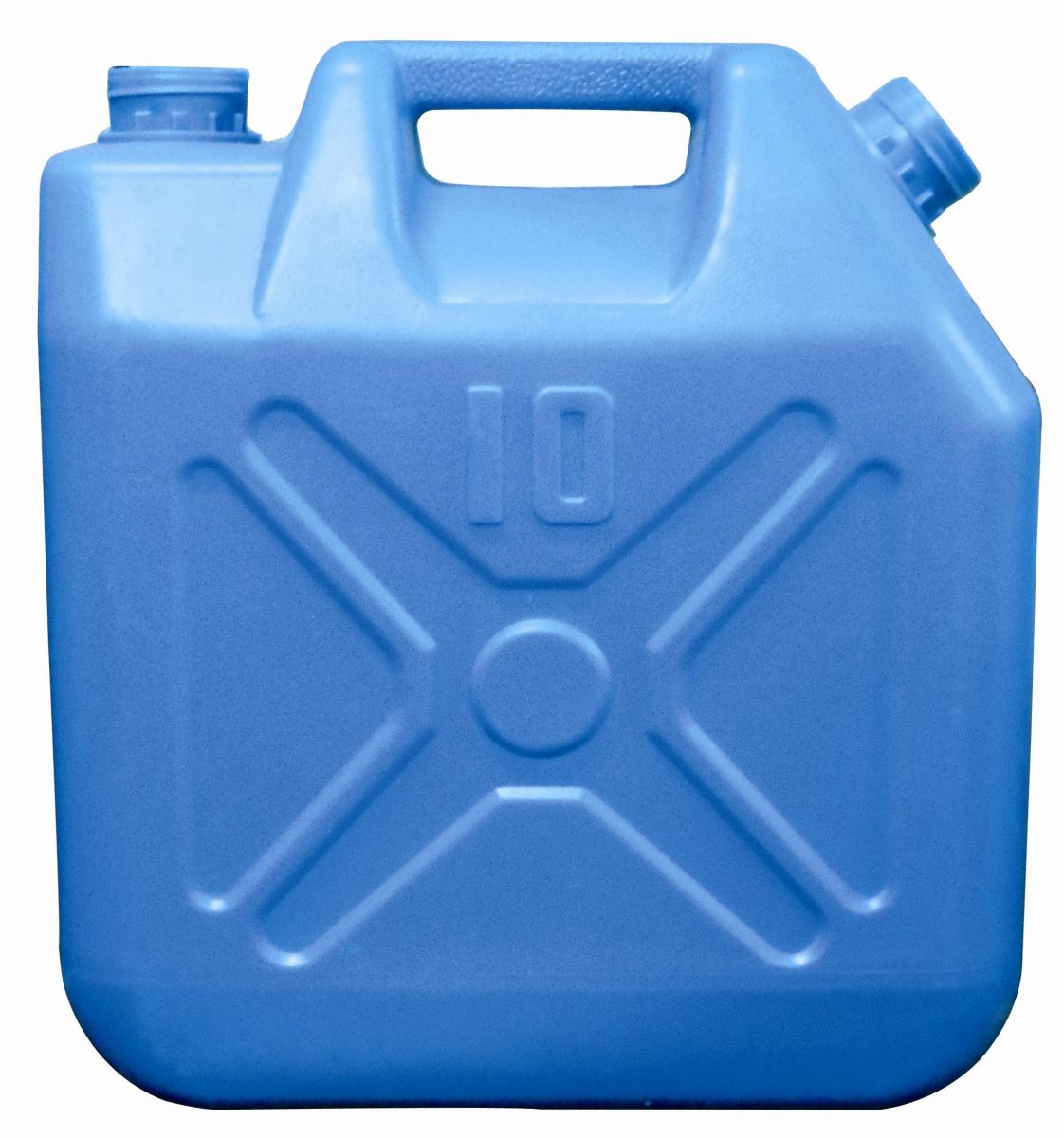

One head 12L |
|
Dry cycle |
900 pcs/h |
|
Machine size (L×W×H) |
3.8×2.2×3.1(m) |
|
Machine weight |
7.8 t |
|
Total power |
55 kw |
|
Power consumption |
27 kw/h |
|
Plasticizing system |
|
|
Specification |
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
|
Machine barrel screw |
∮70mm，L/D=24, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
90 kg/h |
|
Heating zone |
3 Zone Casting, aluminum heater |
|
Heating power |
11.6 kw |
|
Extrusion motor |
Three phase a synchronism motor (380v、50Hz), 22 kw |
|
Cooling fan |
3 zones 85 w |
|
Extrusion system |
|
|
Specification |
Center input die head , product weight adjustable |
|
Die Head |
38CrMoALA high quality nitrogen steel |
|
Max. Dia. of Die Head |
∮ 130mm |
|
Heating Zone |
3 zones heat coil of stainless steel |
|
Central distance of die head |
240 mm |
|
Heating Power |
9.6 kw |
|
Open and clamping system |
|
|
Specification |
Gear wheel and rack in-phase aim at twin shaft clamping device, and cylinder |
|
Clamping Force |
110 kn |
|
Mold Move Stroke |
240～620 mm |
|
Mold platen Dimension |
W×H:530×520 mm |
|
Mold thickness |
240-288 mm |
|
Electric control system |
|
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch Screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature Module |
Taiwan I-7018RP automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable PLC |
|
Protection Function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic system |
|
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
Three phase a synchronism (380v、50Hz),11 kw |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
Imported hydraulic components |
|
System pressure |
100 kg/cm2 |
|
Pipes |
Bilayer high pressure blast pipes |
|
Cooling Mode |
Water cool and oil cooler separately |
|
Pneumatic system |
|
|
Specification |
Imported famous brand pneumatic pressure |
|
Air Pressure |
0.6 MPa |
|
Air Consumption |
0.8 m3/min |
|
Valve |
TAIWAI AIRTAC |
|
Cooling system |
|
|
Specification |
Mold、barrel、oil box adopt independent cooling waterway |
|
Cooling Medium |
Water |
|
Water Consumption |
60 L/min |
|
Water Pressure |
0.2-0.6 MPa |
|
|
