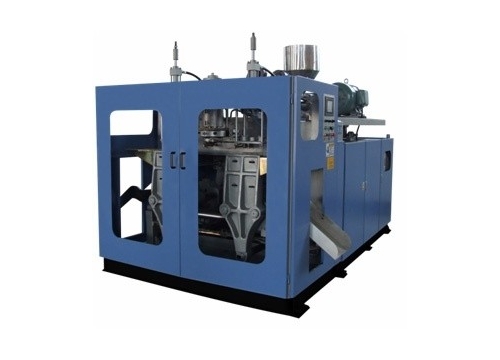

Features PLC + touch screen, making the operation easy. Automatic Malfunction alarm with self diagnosis, making the malfunction clear at glance; Center input die head, eliminating the knit line completely and making it easy to change the material and color; Double bar horizontal motion structure in moving, opening and closing mold, making the clamping force equally distributed , so the cut is smoother; Control the hydraulic system with imported proportional valve, ensuring the action steady, accurate and energy saving; High speed and efficient plasticizing system, mixing well and ens
|
Basic parameter |
|
|
Applicable material |
PE, PP, |
|
Max. product volume |
Single die head:5L |
|
Dry cycle |
700x2 pcs/h |
|
Machine size (L×W×H) |
2.9×2.1×2.7 (m) |
|
Machine weight |
7.8 t |
|
Total power |
49 kw |
|
Power consumption |
17 kw/h |
|
Plasticizing system |
|
|
Specification |
Good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed reducer |
Hard-teeth, low noise & wear-resistant speed reducer |
|
Machine barrel screw |
∮70mm，L/D=24, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
80 kg/h |
|
Heating zone |
3 zones casting, aluminum heater |
|
Heating power |
12.6 kw |
|
Extrusion motor |
Three phase a synchronism motor (380V、50Hz), 22 kw |
|
Cooling fan |
3 zones 85 w |
|
Extruction system |
|
|
Specification |
Continuous die head |
|
Die head |
38CrMoALA high quality nitrogen steel |
|
Max. dia. of die Head |
Single die head:∮140mm; double die head:∮ 90mm |
|
Heating zone |
3 zones heat coil of stainless steel |
|
Central distance of die head |
--- |
|
Heating power |
2.5 kw |
|
Die heat huff |
Pressure and capacity can be adjusted |
|
Preform adjustment |
Automatic |
|
Heat insulation |
By heat insulating board between accumulator and hydraulic cylinder |
|
Open and clamping system |
|
|
Specification |
Gear wheel and rack in-phase aim at twin shaft clamping device, and cylinder |
|
Clamping force |
65 kn |
|
Mold move stroke |
158～518 mm |
|
Max. mold platen |
W×H:320×380 mm |
|
Max. mold dimension |
W×H×T: 380×400 mm |
|
Electric control system |
|
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature control |
Self-regulation |
|
Temperature module |
Taiwan I-7018RP automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable |
|
Protection function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic system |
|
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
three phase a synchronism (380V、50Hz),7.5kw |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
imported hydraulic components—YUKEN |
|
System pressure |
100 kg/cm2 |
|
Pipes |
High pressure blast pipes |
|
Cooling mode |
Water cool and oil cooler separately |
|
Pneumatic system |
|
|
Specification |
Imported famous brand pneumatic pressure |
|
Air pressure |
0.6 MPa |
|
Air consumption |
0.8 m3/min |
|
Valve |
TAIWAI AIRTAC |
|
Cooling system |
|
|
Specification |
Mold、barrel、oil box adopt independent cooling waterway |
|
Cooling medium |
Water |
|
Water consumption |
50 L/min |
|
Water pressure |
0.2-0.6 MPa |
|
|
