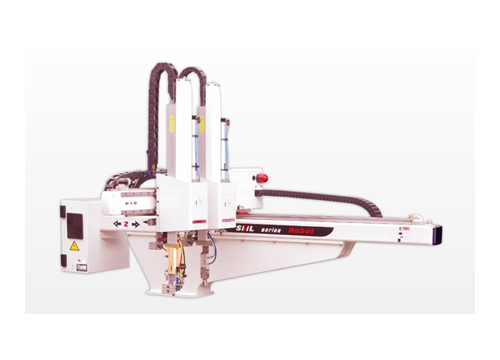

APPLICABLE ON CLAMPING FORCE OF 50 TONS TO 220 TONS PLASTIC INJECTION MOLDING MACHINE Standard traversing axis is drove by servo motor, converter motor is optional, saving cost. The vertical arm is drove by cylinder. The robot traversing adopts servo motor and accuracy control system with accuracy to ±0.1mm. It can be adjusted on a percentage scale and adopts two German RexRoth high-rigidity and low noisy linear slides, it is high-speed and low noisy. It can be selected low-speed function, quickly removed from the mould and placed carefully outside of machines, avoiding hurting person. Han
|
Model |
Unit |
SHC-650(D) |
SHC-750(D) |
SHC-850(D) |
|
Type |
Single-Stage |
|||
|
Injection Molding |
Ton |
50~160 |
100~250 |
120~300 |
|
Vertical Stroke |
MM |
650 |
750 |
850 |
|
Crosswise Stroke |
MM |
Product Arm:200 |
Product Arm:200 |
Product Arm:300 |
|
Traverse Stroke |
MM |
1300 |
1500 |
1700 |
|
Swivel angle |
Degree |
90 |
90 |
90 |
|
Max,Loding |
Kg |
3.5 |
3.5 |
3.5 |
|
Dry Take Out Time |
Sec |
2.2 |
2.5 |
2.7 |
|
Dry Cycle Time |
Sec |
11 |
13 |
16 |
|
Drive System |
Z-axis Servo motor (Converter motor) X.Y-axis Pneumatic Cylinder |
|||
|
Working Pressure |
5~7kgf/cm² |
|||
|
Air Consumption |
NI/cycle |
12 |
13 |
14 |
|
Power Source |
Ac |
|
1PH 220V 50/60HZ |
|
|
Power Capacity |
Kva |
Servo motor0.5 (0.3Converter motor) |
||
|
Net Weight |
Kg |
115(125) |
125(135) |
130(143) |
D:Double Arm Lable
|
Model |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
|
SHC-650(D) |
1930 |
400 |
1150 |
1220 |
312 |
790 |
120 |
150 |
310 |
650 |
750 |
180 |
140 |
100 |
|
SHC-750(D) |
2030 |
400 |
1250 |
1320 |
312 |
790 |
120 |
150 |
310 |
750 |
750 |
180 |
140 |
100 |
|
SHC-850(D) |
2260 |
400 |
1480 |
1420 |
312 |
890 |
120 |
150 |
310 |
850 |
850 |
180 |
140 |
100 |
|
|
