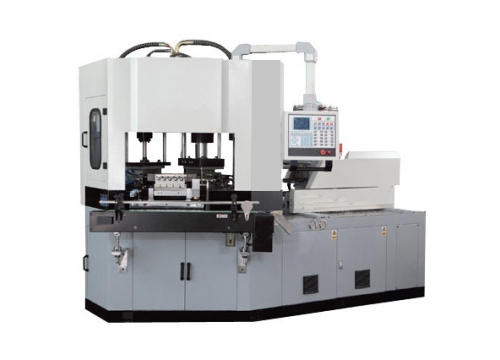

Features Adopt Electro-Hydraulic Hybrid Servo System can save 80% power than usual； Apply the double vertical pole and single horizontal beam to make the enough rotation space, longer bottles, make the mold installation easy and simple.
|
Device |
Item |
Unit |
Date |
|
Basic system |
Screw diameter |
mm |
40 |
|
Screw L/D ratio |
L/D |
20 |
|
|
Max injection capacity |
cm3 |
200 |
|
|
Injection weight |
g |
142 |
|
|
Injection pressure |
MPa |
175 |
|
|
Max screw stroke |
mm |
165 |
|
|
Max screw speed |
rpm |
10-225 |
|
|
Heating capacity |
kw |
7.5 |
|
|
No of heating zone |
zone |
3 |
|
|
Clamping & blowing system |
Clamping force of injection |
kn |
300 |
|
Clamping force of blowing |
kn |
43 |
|
|
Opening stroke of mould platen |
mm |
120 |
|
|
Lifting height of rotary table |
mm |
60 |
|
|
Platen dimension |
mm |
350*240 |
|
|
Min mould thickness |
mm |
180 |
|
|
Heating capacity of mould |
kw |
1.2-2.5 |
|
|
Stripping system |
Stripping stroke |
mm |
180 |
|
Driving system |
Main motor power |
kw |
15 |
|
Hydraulic pressure |
MPa |
14 |
|
|
Product range |
Suitable bottle capacity |
L |
0.005~0.8 |
|
Height of bottle |
mm |
≤170 |
|
|
Diameter of bottle |
mm |
≤100 |
|
|
Other |
Dry cycle |
s |
6 |
|
Pressure of compressed air |
MPa |
1.2 |
|
|
Discharge of compressed air |
m3/min |
＞0.8 |
|
|
Cooling water flowage |
m3/h |
3 |
|
|
Total rated power without mold heating |
kw |
22.56 |
|
|
Dimension |
mm |
3050*1300*2250 |
|
|
Weight |
t |
3.5 |
Cavity Number of one mould corresponding to product volume(for reference)
|
Product volume（ml） |
8 |
15 |
20 |
40 |
60 |
80 |
100 |
|
Cavity quantity |
7 |
6 |
5 |
4 |
4 |
3 |
3 |
|
|
