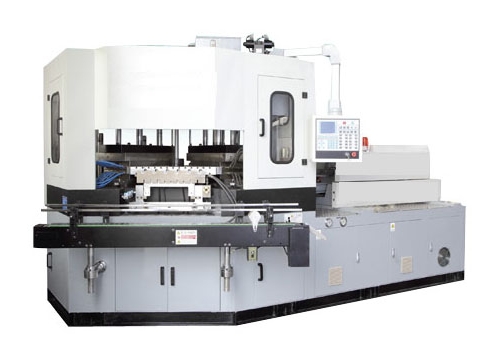

Features Apply the double vertical pole and single horizontal beam to make the enough rotation space, longer bottles, make the mold installation easy and simple. The injection mold adopt the double assistant cylinder open-close mold, ensure the stable and quick moving. Then clamping force is three points equal distribution. High speed hydraulic –added valve can increase the clamping speed.
|
Device |
Item |
Unit |
Date |
|
Basic system |
Screw diameter |
mm |
50 |
|
Screw L/D ratio |
L/D |
22.5 |
|
|
Max injection capacity |
cm3 |
430 |
|
|
Injection weight |
g |
310 |
|
|
Injection pressure |
MPa |
161 |
|
|
Max screw stroke |
mm |
220 |
|
|
Max screw speed |
rpm |
10-235 |
|
|
Heating capacity |
kw |
13 |
|
|
No of heating zone |
zone |
3 |
|
|
Clamping & blowing system |
Clamping force of injection |
kn |
600 |
|
Clamping force of blowing |
kn |
152 |
|
|
Opening stroke of mould platen |
mm |
140 |
|
|
Lifting height of rotary table |
mm |
75 |
|
|
Platen dimension |
mm |
780*390 |
|
|
Min mould thickness |
mm |
280 |
|
|
Heating capacity of mould |
kw |
5 |
|
|
Stripping system |
Stripping stroke |
mm |
220 |
|
Driving system |
Main motor power |
kw |
30 |
|
Hydraulic pressure |
MPa |
14 |
|
|
Product range |
Suitable bottle capacity |
L |
0.015~0.85 |
|
Height of bottle |
mm |
≤210 |
|
|
Diameter of bottle |
mm |
≤120 |
|
|
Other |
Dry cycle |
s |
5 |
|
Pressure of compressed air |
MPa |
1.2 |
|
|
Discharge of compressed air |
m3/min |
＞0.8 |
|
|
Cooling water flowage |
m3/h |
3.5 |
|
|
Total rated power without mold heating |
kw |
47 |
|
|
Dimension |
mm |
4150*1850*2400 |
|
|
Weight |
t |
10 |
Cavity Number of one mould corresponding to product volume(for reference)
|
Product volume（ml） |
15 |
20 |
40 |
60 |
100 |
120 |
200 |
|
Cavity quantity |
16 |
14 |
14 |
12 |
10 |
9 |
6 |
|
|
