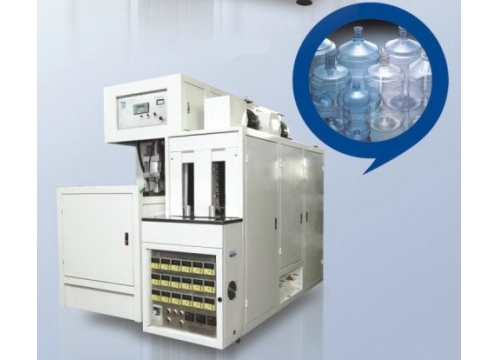

XT-10A-20 is a kind of manual Stretch-Blow Molding Machine and specially designed to produce gallon bottle up to 5-gallon, as well as jumbo wide mouth jar up to 20L. With QCS-10A-20, you can produce 5gallon bottle up to 80 bottles per hour.
Each set of QCS-10A-20 is made up of two parts: Bottle Blower and Infrared type Preform Reheater. Thereinto, the reheater is in charge of heating the PET preform to suitable soft condition for blowing; and the blower will finish the whole bottle blowing process, including sealing, stretching, blowing, exhausting and blow mold’s moving, controlled by advanced PLC control system.

• Special design for PET Gallon Bottle up to 5 Gallon
• Can produce jumbo wide mouth jar up to 20 liter with neck size up to 130mm Can produce jumbo wide mouth jar up to 20 liter with neck size up to 130mm
• Using Infrared reheat units, to achieve uniform heating throughout the two walls of preform
• Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
• Special designed fan cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
• With two sets of chain-wheel transmission mechanism to carry out AL discs’ independent revolution and rotation
• Using "Mitsubishi" General Purpose Inverter to control reheating unit chain’s movement
• Speeds of up to 80 bottles/hour using one-cavity mold for 5-gallon bottle
• Use advanced PLC control system with a use-friendly "soft-touch" pad
• Built-in memory of PLC holds up to 14 sets of bottle blowing data
• PLC control system with counting function and time-control precision to 0.01second
• Pneumatic elements of famous brand (Bosch & Lucifer) are extremely reliable
• Operated only by one person, highly-trained is not required
• Equipped with special designed air storage unit
• Fast, low cost production changeovers. Simple installation & startup adjustment
