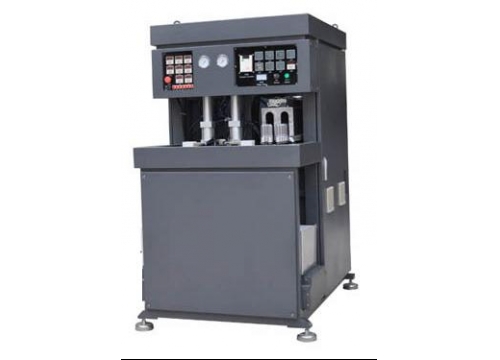

PET Manual Blowing Machine(China Patent)
Heating and blowing by single person, the capacity can reach 1600 bph;
Full-automatic constant temperature system adjust the temperature according to external enviroment;
New design heating unit reduce the bottle preform distance,single line infrared lamp heat both sides of preforms,can save electirc energy more than 50%;
Special design of the clamping system reduce the diameter of the cylinder,save 40% low compressor pressure;
Fast mould change can be finished by one person only;
The speed producing capacity make low labor strength.
|
Item |
Unit |
XT-D-1.5L |
XT-D-5L |
|
|
Production capacity |
bot/h |
1200-1600 |
1300 |
|
|
Product |
Volume |
ml |
1500 |
5000 |
|
Max diameter |
mm |
90 |
190 |
|
|
Max height |
mm |
320 |
320 |
|
|
Mould |
Cavity |
cavity |
2 |
2 |
|
Thickness |
mm |
140 |
240 |
|
|
Max width*height |
mm |
138*320 |
238*320 |
|
|
Preform |
Max neck size |
mm |
20-35 |
28-120 |
|
Max lengt |
mm |
120 |
120 |
|
|
Heat oven |
Lamp number |
pcs |
8 |
8 |
|
Adjust zone |
zone |
1 |
1 |
|
|
Electrical |
Power |
v / Hz |
380/50 |
380/50 |
|
Heating power |
kw |
12 |
12 |
|
|
General power |
kw |
13 |
13 |
|
|
Compresses air |
Blow compressed |
MPa |
2.2-3.5 |
2.2-3.5 |
|
Drive compressed |
MPa |
0.8-1.0 |
0.8-1.0 |
|
|
Machine dimensions |
Main machine |
m |
1.53*1*1.85 |
2.12*1.53*1.85 |
|
Machine net weight |
Net machine |
kg |
860 |
1150 |
|
gross weight |
kg |
890 |
1300 |
|
|
Machine packaging dimensions |
Main machine |
m |
1.03*1.56*1.85 |
2.15*1.56*1.85 |
|
|
